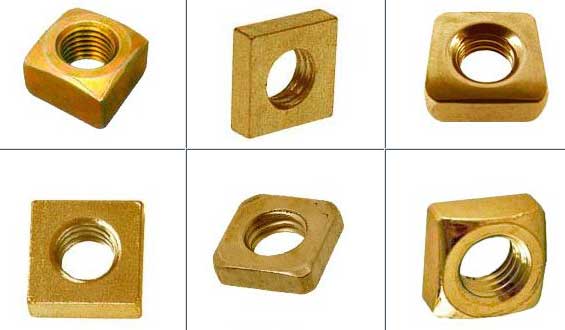

We are a leading manufacturer and provider of superior quality Brass Square Nuts. Our range of Brass Square Nuts is in good demand in the market due to high quality & durability. We offer cold formed, Sheet metal and machined quality Brass Square nuts.
 |
 |
 |
An usual fixing nut is 6 sided or hexagonal but a square nut has 4 sides and is square shaped nut. The 4 sides provide more surface area in contact with the parts being fastened and hence provide a greater resistance to being loosened (or tightened). Square nuts are generally used with square bolts. These nuts are pressed from sheetmetal, Machined from a square bar or cold formed from Brass wire.
| Standards of Brass Square Nuts | : | DIN 557, DIN 562 , ASTM B18.2.2 standards |
| Finish of Brass Square Nuts | : | Nickel plated, Zinc plated, Acid-Dipped (natural) |
| Threads of Brass Square Nuts | : | Metric ISO, UNC, UNF, BSW, UNEF, NPT, NPSM, NPSL |
| d1 | s | e | m |
|---|---|---|---|
| M5 | 8 | 11.3 | 4 |
| M6 | 10 | 14.1 | 5 |
| M8 | 13 | 18.4 | 6.5 |
| M10 | 16 | 22.6 | 8 |
| M12 | 18 | 25.4 | 10 |
| M16 | 24 | 33.9 | 13 |
